Overview
You can edit, duplicate, and resize markups on both the web and mobile versions of Fieldwire. This is useful if you would like to adjust various elements of a markup.
Please Note: At this time, you are not able to bulk update markups to the color purple (private markups). If you would like to see this feature be developed, please cast your vote by emailing support@fieldwire.com.
Web

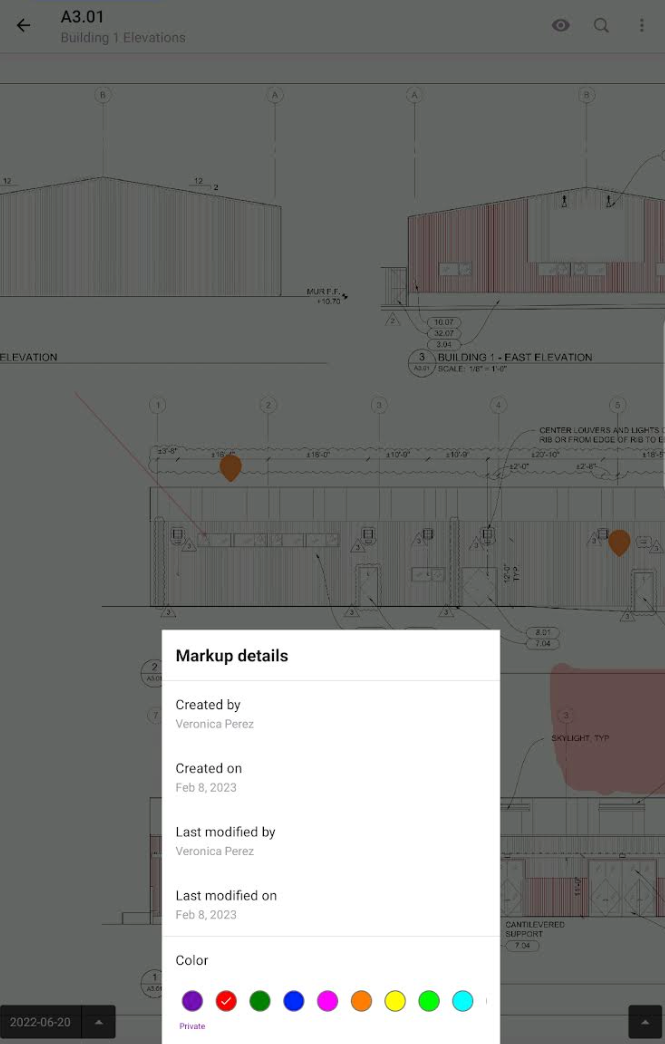

On the web version, right-click on the markup in question and select "Details". You then have the option to edit various elements of the markup, including the Color, Line thickness, and Opacity. In addition, you can view details about who made the markup and when it was made. You can duplicate the markup on the plan by selecting the "Duplicate" option. The "Move / Resize" option allows you to edit the length/size of the markup in question.
To adjust the size or placement of markups, select the Selection Tool and highlight the markup or markups you want to edit as shown below.
Copying and Pasting Tasks and Markups
Fieldwire now allows you to copy/paste your tasks and markups across different plan sheets on a project! With this update, you will also be able to copy/paste a selection of multiple markups and tasks at once across plans on the same project. Markups can even be copied across different projects! This can be helpful for you if you have similar markups on multiple plans, or if you are working with multiple rooms/floors that may need the same markups.
Note: Tasks and all hyperlink markups cannot be copied across different projects because they refer to other objects within the project that might not exist in a different project.
Note: This functionality is on Web only.
Copying and pasting Tasks and Markups is a relatively simple process, and there are a couple of different ways to do so. The first option is to right click on the markup or task you want to copy and select "Copy". Then, go to the new plan sheet, right-click on the new plan sheet, and select "Paste". Another way to do this is to use the selection tool (arrow icon) and select the markup or task you want to copy. Then, you can use the common keyboard shortcut ctrl+C (cmd+C on Mac) to copy the markup or task, navigate to the new plan sheet, and the use ctrl+V (cmd+V on Mac) to paste the markup or task on the new plan sheet.
As mentioned above, you can also copy and paste multiple tasks and markups to a new plan sheet as shown in the short video below. To do so, you can use the same right-click method or keyboard shortcut method as described above.
Mobile

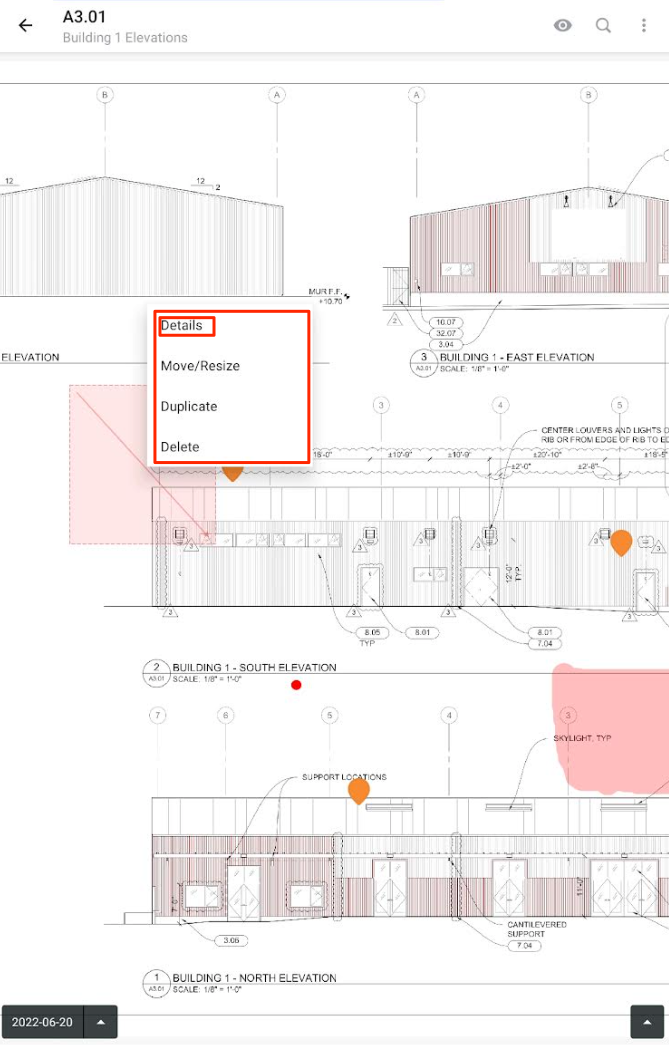

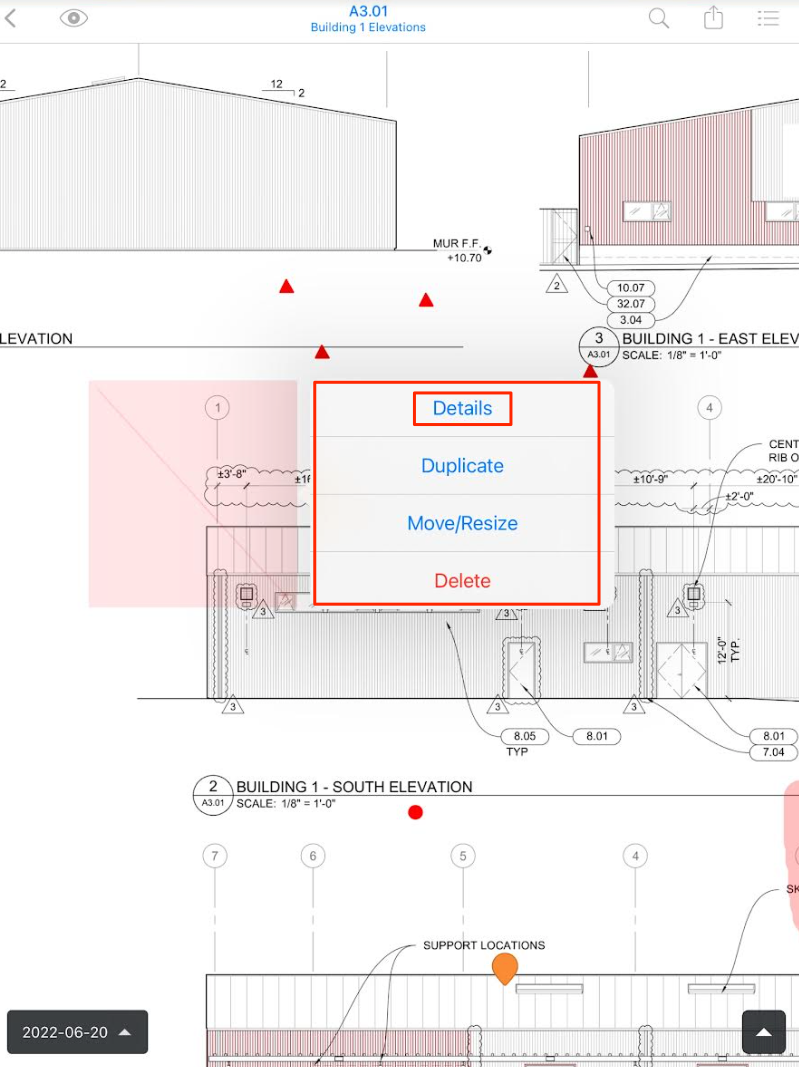

On the mobile version, just click and hold down on the markup and you'll see the same options to edit, move/resize, and duplicate appears. This works for tasks and file links as well.
Note: You will not see the option to "Resize" when you perform this action on a Markup symbol. Resizing markup symbols on mobile is coming in a later update. You can resize markup symbols on Web.
On Android
On iOS
More Information:
These help articles explain markups in more detail:
