Overview
Business subscribers can use Ricoh Theta cameras to capture 360° photos and post them directly to Tasks or Hyperlinks on plans. These photos have a gyroscopic viewer where you can scroll and pan throughout the photo. Although we don't support non-Ricoh Theta 360 cameras, photos from non-ricoh theta 360 cameras can still be uploaded to Fieldwire through the web.
If it is uploaded as a '360 photo', it will have a gyroscopic viewer. Using 360° photos in Fieldwire is a great way to give more depth and detail to your photos.
To ensure your Ricoh camera firmware is up to date and to connect to the camera's Wifi, you can opt to install the Ricoh app from the Google Play Store or Apple Store.
How to upload a 360° Photo

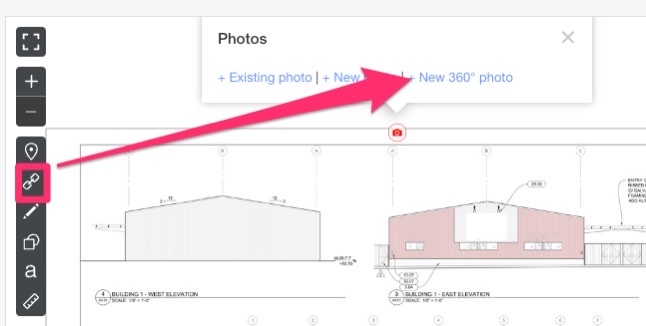

On a Plan
- Open a plan on the 'Plans' tab
- Choose the 'Hyperlink' tool
- Choose the 'Camera' option.
- Place the camera link on the plan
- Choose '+ New 360 Photo'
Note: 360° photos will remain accessible via hyperlinks in plans that are exported from Fieldwire.
In a Task
- Open a task from the 'Tasks' tab or from a plan
- Choose the attachments (paperclip) icon
- Select the '360 photo' option
From there, upload your 360° photos to the task! These will lead to the gyroscope viewer.
Note: 360° photos are included as live-links in task reports!
Tip: You can also add 360° photos directly to the task itself using the 'Existing photo' option
On the 'Photos' tab:
- Go to the 'Photos' tab
- Select '+New photo'.
- Then choose to add a '360 photo'.
You can also retroactively add your 360° photos to tasks from the Photos tab.
To do so:
- Select a photo
- Choose the 'Actions' dropdown
- 'Attach to tasks'.
- Search for the task title and
- Choose 'Attach photo(s)'
More Information
This help content will give more information about using 360° photos in Fieldwire:
360° Photos
